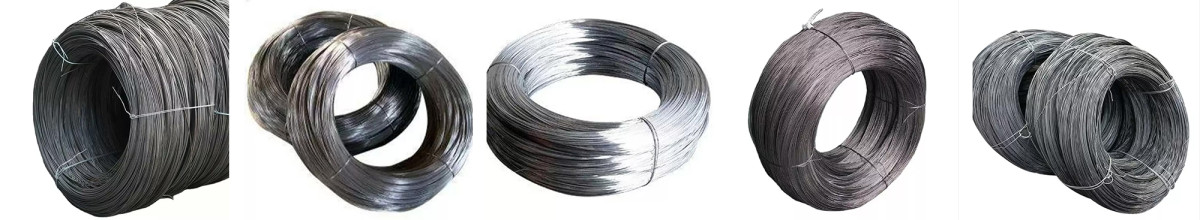

Q235B Carbon Steel Wire

Product Name	Carbon steel wire
Material	NVA,NVD, A,A32,, A36, AH32, AH36, B,16MnL, D32, D36, DH32, DH36, EH32, EH36Q195, Q235, Q235B, Q345, 10-50#, 16Mn, 20Mn, 35Mn, 45Mn, 50Mn, 20Mn2, 35Mn2, 45Mn2.15CrMo, 35CrMo, 42CrMo, 20CrMo, 12Cr1MoV, 27SiMn, 60Si2Mn, 20Cr, 40Cr15GrMoG , 10GrMo910 , 12Gr2MoG , 12Gr1MoVG, 1Gr5Mo, 1Gr9Mo , P11, T11 , T91 , T22 , P22 , P5 , P9 , WB36
Standard	SAE1006/1008/1006B/1008B/1018B/1045/1055/1022SWRCH35K、SWRCH22A、 SWRH62B、SWRH77B、SWRH82B ASTM B498 (Steel Core Wire For ACSR); GB/T 3428 (Over Stranded Conductor or Aerial Wire Strand ); GB/T 17101 YB/4026 (Fence WireStrand); YB/T5033 (Cotton Baling Wire Standard)
Diameter	5.5-70mm
Tensile Strength	350-550MPA
Delivery terms	FOB,CFR,CIF,CNF etc.
Brand	TISCO,LISCO,ZPSS,BAOSTEEL.ANSTEEL
Exported Area	USA,UAE,Europe,Asia,Middle East,Africa,South America or other areas.
Lead Time	A.7 days if this goods is stock goods.B.20 days if this goods will be produced after order
Payment Terms	30% T/T in advance as deposit,70% balance against the B/L copy or 100% irrevocable L/C at sight
Remark	Specific requirement of alloy grade,temper or specification can be discussed at your request

Grade	Rank	Chemical Composition( %)
Grade	Rank	C	Mn	Si	S	P
Q195		0.06~0.12	0.25~0.50	≤0.3	≤0.05	≤0.045
Q215	A	0.09~0.15	0.25~0.55	≤0.3	≤0.05	≤0.045
Q215	B	0.09~0.15	0.25~0.55	≤0.3	≤0.045	≤0.045
Q235	A	0.14~0.22	0.30~0.65	≤0.3	≤0.05	≤0.045
	B	0.12~0.20	0.30~0.70	≤0.3	≤0.045	≤0.045
	C	≤0.18	0.35~0.80	-----	≤0.04	≤0.04
	D	≤0.17	0.35~0.80	-----	≤0.035	≤0.035
Q255	A	0.18~0.28	0.40~0.70	≤0.3	≤0.05	≤0.045
Q255	B	0.18~0.28	0.40~0.70	≤0.3	≤0.045	-----
Q275		0.28~0.38	0.50~0.80	≤0.35	≤0.05	≤0.045

Product Details

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

Packaging and Shipping

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
